Lakewood, New Jersey — Custom Aluminum Windows and a Six-Foot Round Window

Lakewood, Ocean County, New Jersey · Supply, fabrication, installation and waterproofing

LocationLakewood, Ocean County, NJ

ScopeSupply & install

SystemsCustom aluminum windows and doors

Feature6 ft diameter round window

Also includedWaterproofing

DoorsCommercial entrances

Scope of Work

We supplied and installed custom aluminum window systems across several buildings on this Lakewood site, together with commercial entrance doors and the waterproofing of the openings.

The work covered new construction and replacement in existing buildings on the same campus, which meant more than one window type and more than one approach. Every opening was surveyed and the units fabricated to the surveyed dimensions rather than ordered to catalogue sizes.

The Round Window

The feature of the front elevation is a six-foot diameter round window. A circular opening of that size is fabrication work rather than supply — it cannot be ordered from a size chart, the frame is built to the radius, and the glass is cut to a template taken from the opening itself.

The interior photographs below show it set out in the timber framing before cladding, which is the stage at which a circle either lines up with the structure or does not.

Tall Narrow Window Bays

The repeating tall narrow lites give the elevations their rhythm. Windows in this proportion put most of their height into a single vertical run, so sightline consistency across a long elevation is what the eye picks up — and that comes from surveying each opening rather than assuming they match.

Commercial Entrance Doors

Aluminum commercial entrance doors with transoms above, in a dark finish to match the window programme. Doors at this kind of building take heavy two-way traffic at set times of day, so the closer and pivot specification was set against cycle count rather than appearance.

Waterproofing

Waterproofing of the openings was part of our scope rather than someone else's. The perimeter is where a window installation succeeds or fails: head and jamb flashing lapped so every overlap sheds outward, sill pans with end dams, and perimeter joints sized for the movement the frames actually see through the year.

Photographs

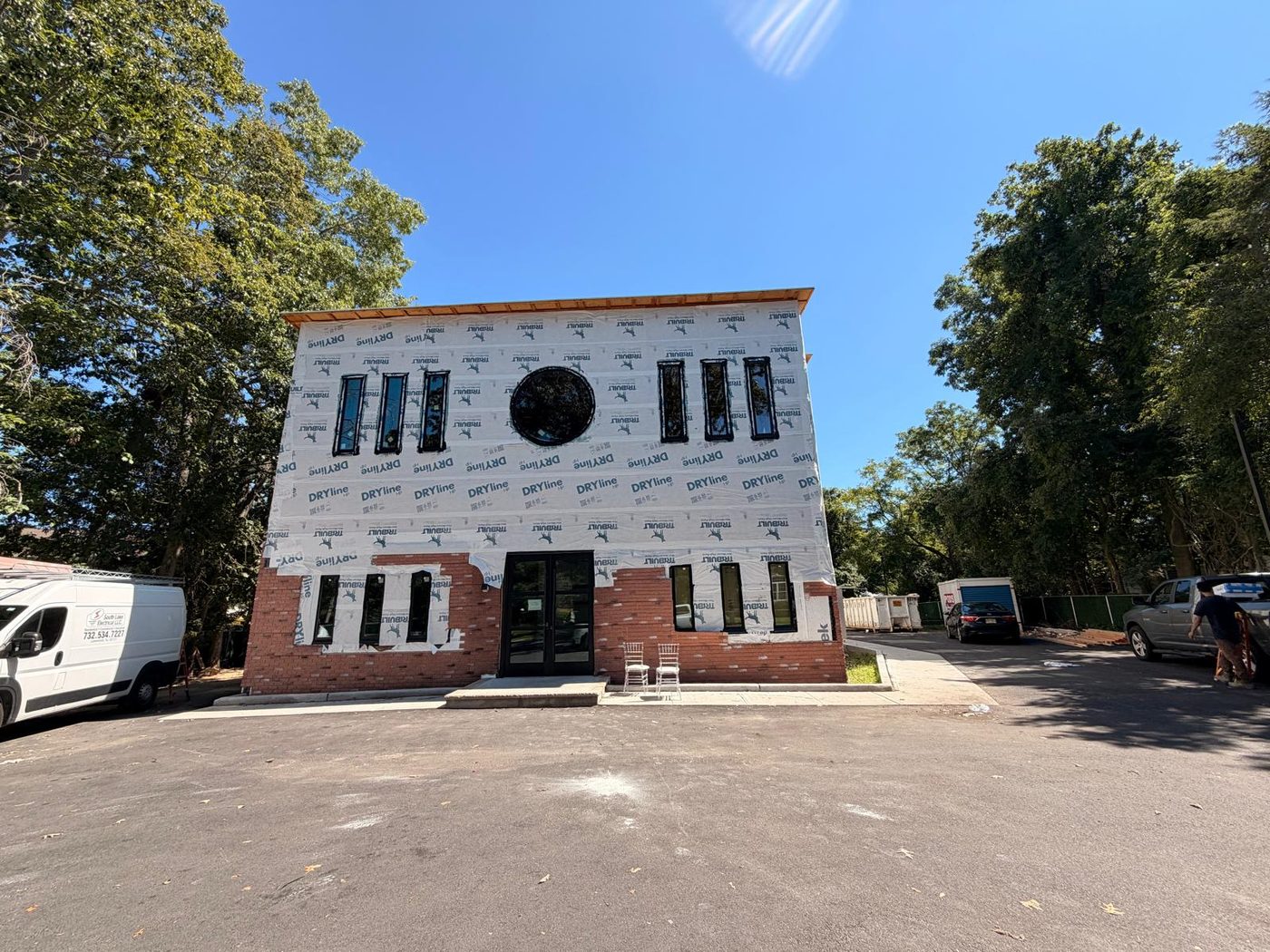

Front elevation with the six-foot round window set between paired narrow lites, entrance doors below — Lakewood, New Jersey — Front elevation with the six-foot round window set between paired narrow lites, entrance doors below

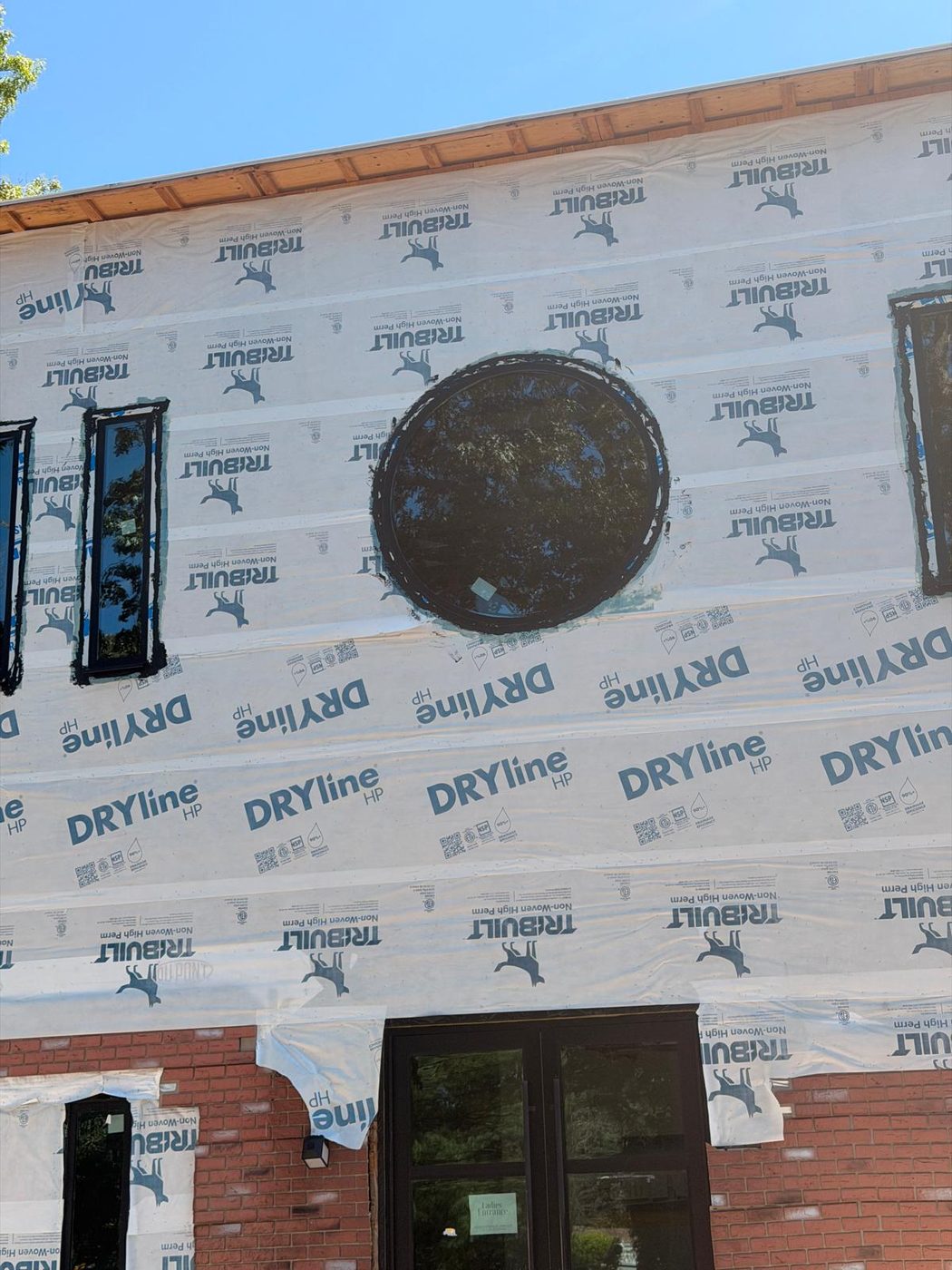

The six-foot diameter round window installed in the front facade, before cladding — Lakewood, New Jersey — The six-foot diameter round window installed in the front facade, before cladding

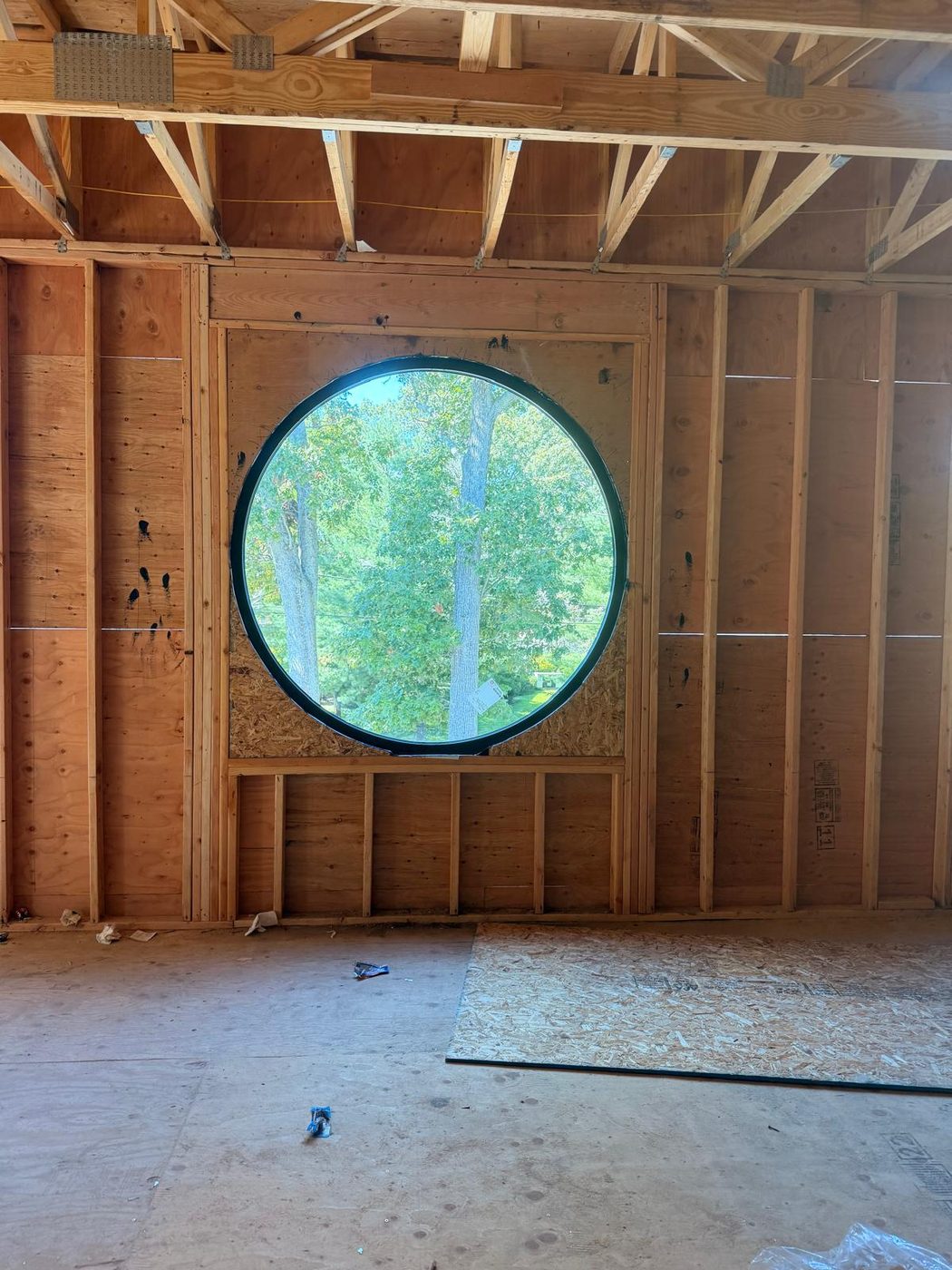

The round window seen from inside during framing, showing the opening set out in timber — Lakewood, New Jersey — The round window seen from inside during framing, showing the opening set out in timber

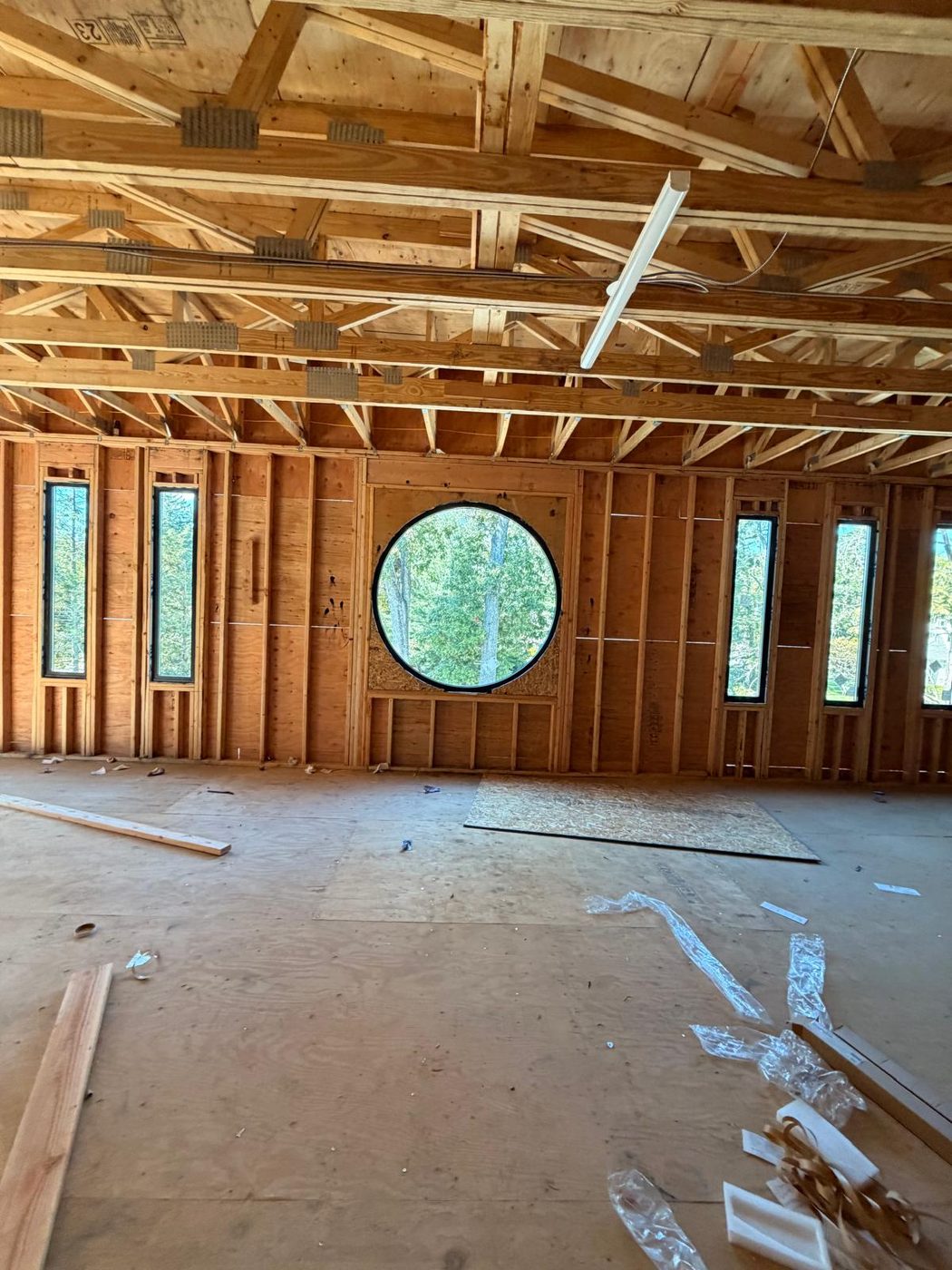

Interior view of the round window alongside the tall narrow window bays — Lakewood, New Jersey — Interior view of the round window alongside the tall narrow window bays

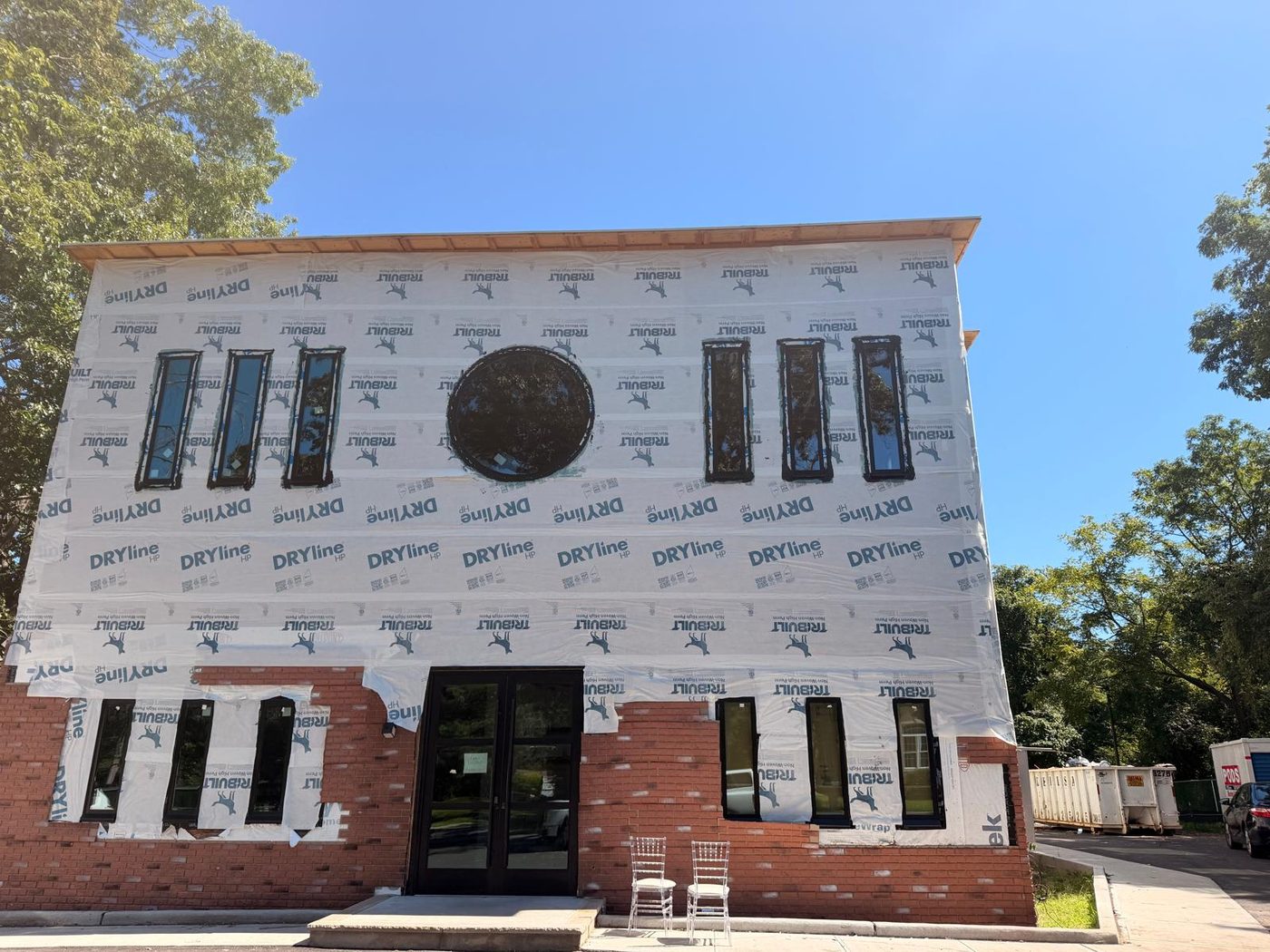

Front facade with the round window and flanking lites in place — Lakewood, New Jersey — Front facade with the round window and flanking lites in place

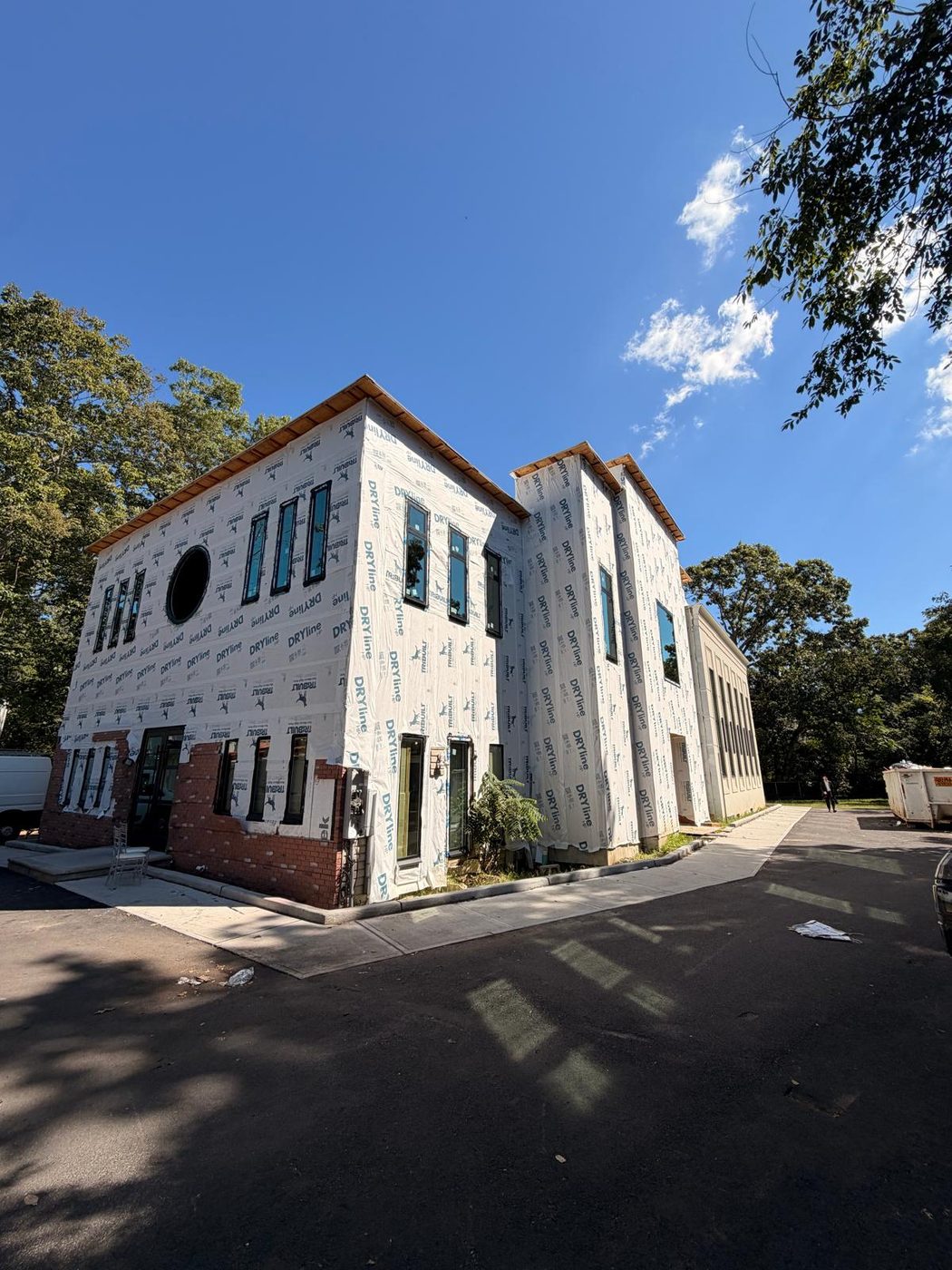

Corner elevation showing the window programme across two faces of the building — Lakewood, New Jersey — Corner elevation showing the window programme across two faces of the building

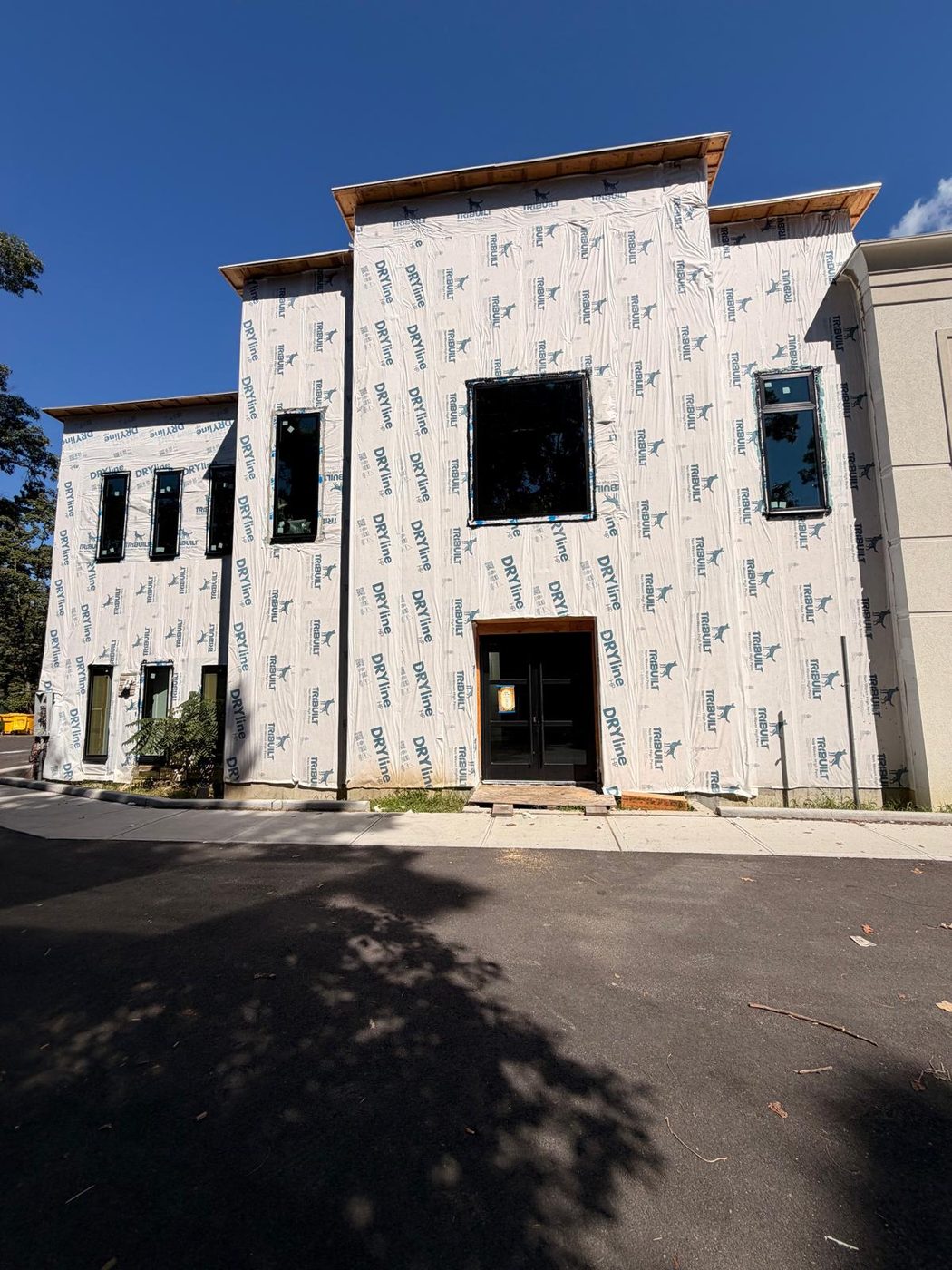

Windows installed and weathertight ahead of cladding — Lakewood, New Jersey — Windows installed and weathertight ahead of cladding

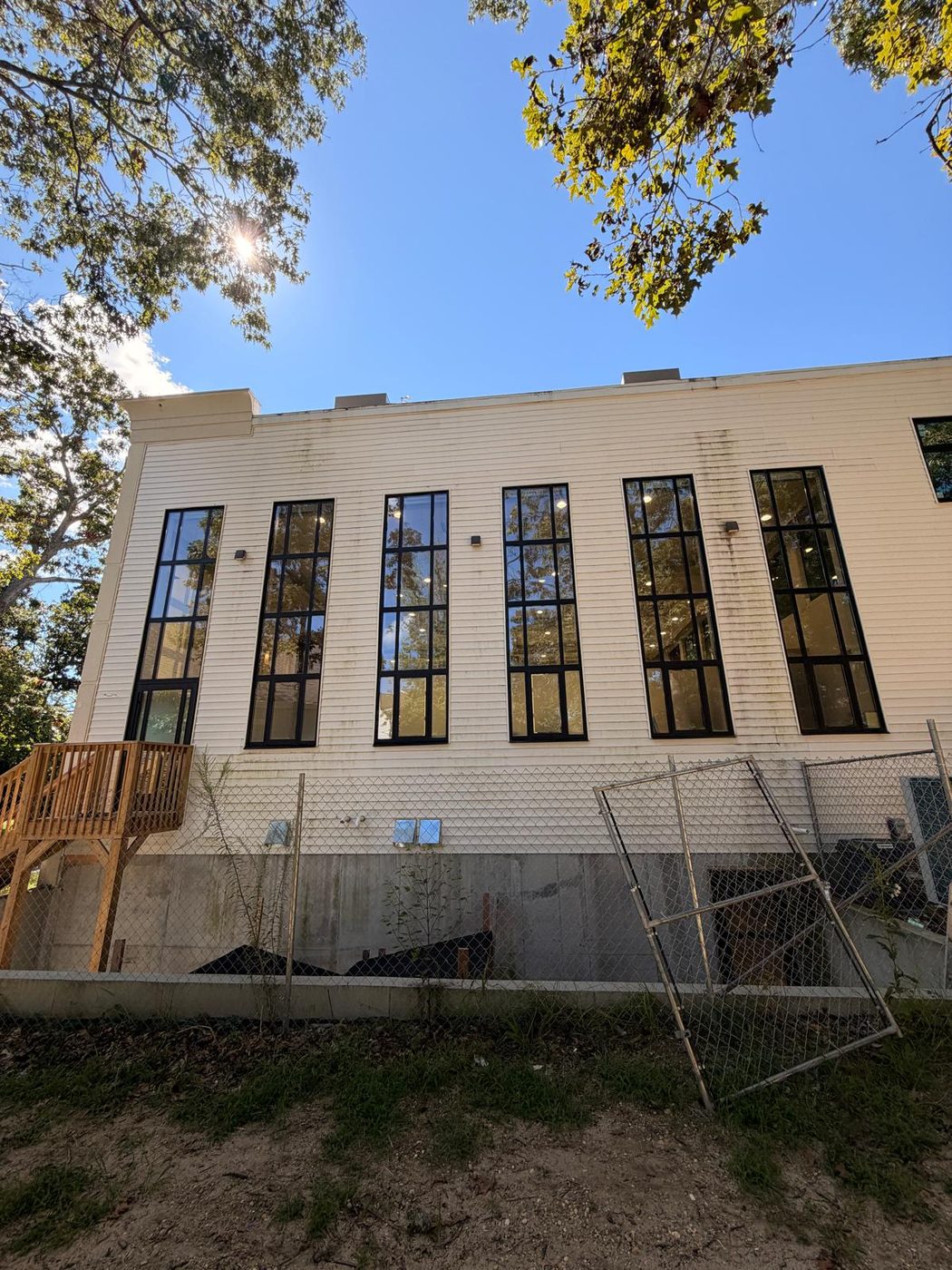

Elevation of the adjoining building with tall multi-light windows — Lakewood, New Jersey — Elevation of the adjoining building with tall multi-light windows

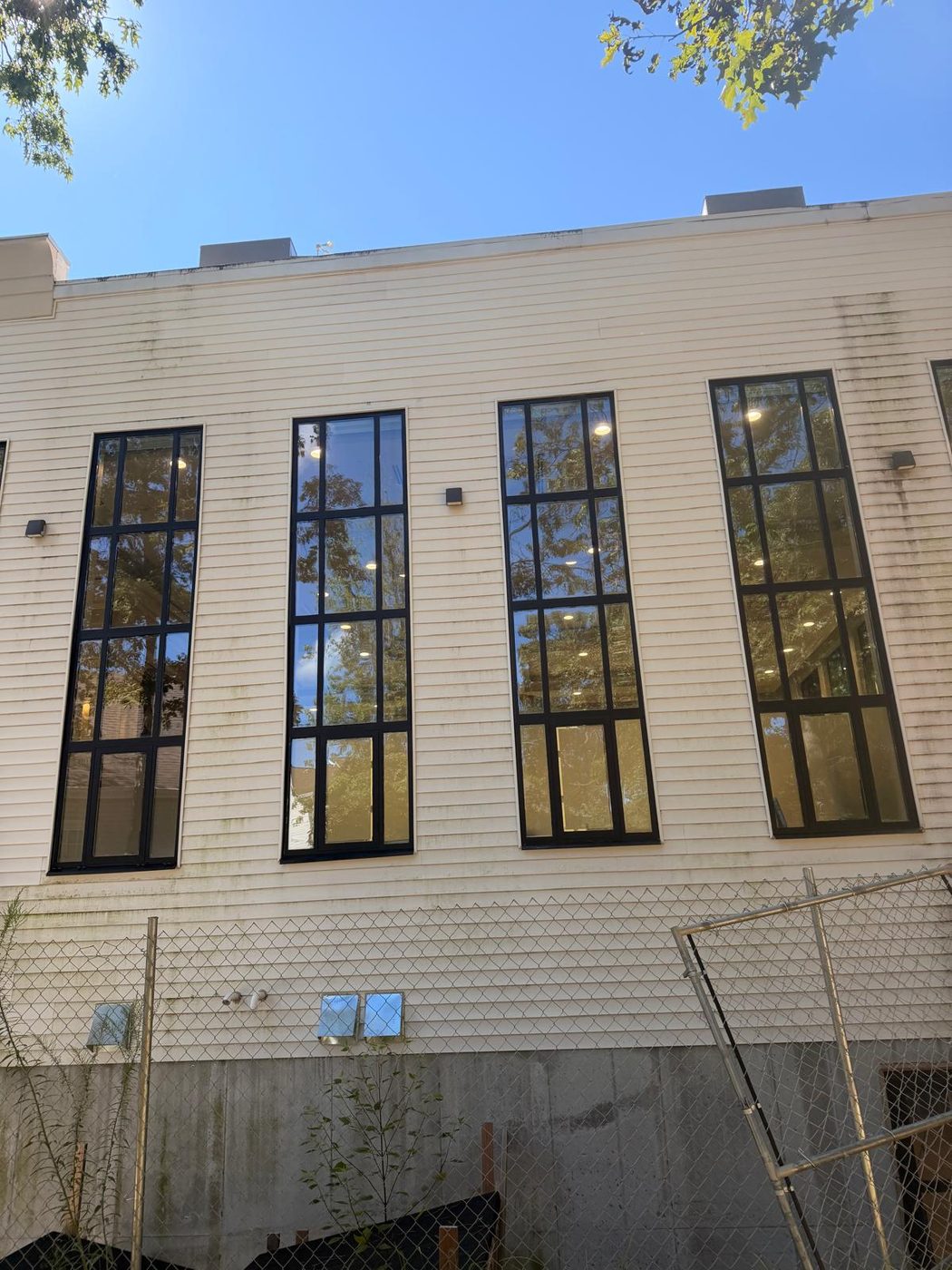

Tall aluminum windows with divided lites on the adjoining elevation — Lakewood, New Jersey — Tall aluminum windows with divided lites on the adjoining elevation

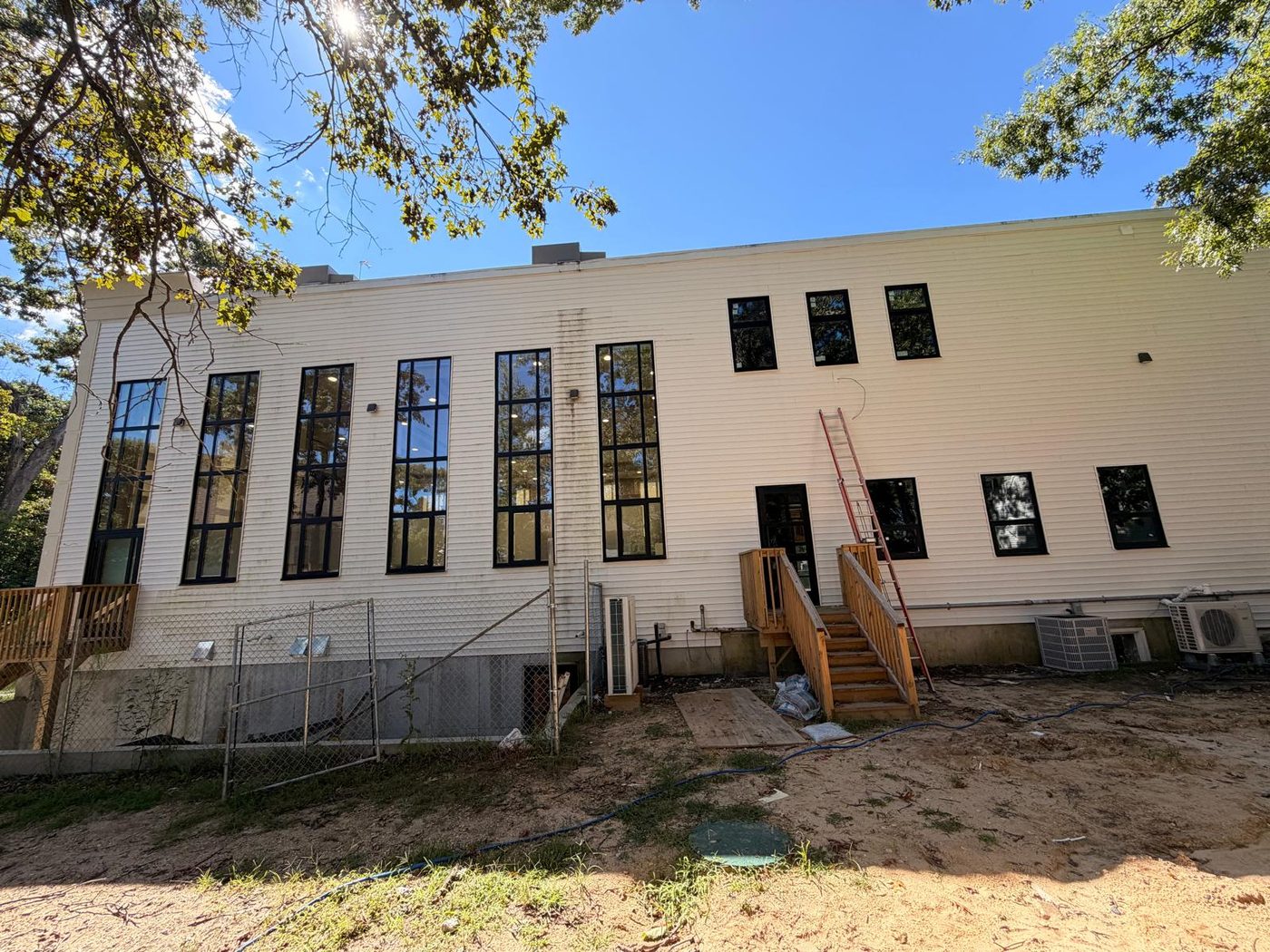

Side elevation window replacement in the existing building — Lakewood, New Jersey — Side elevation window replacement in the existing building

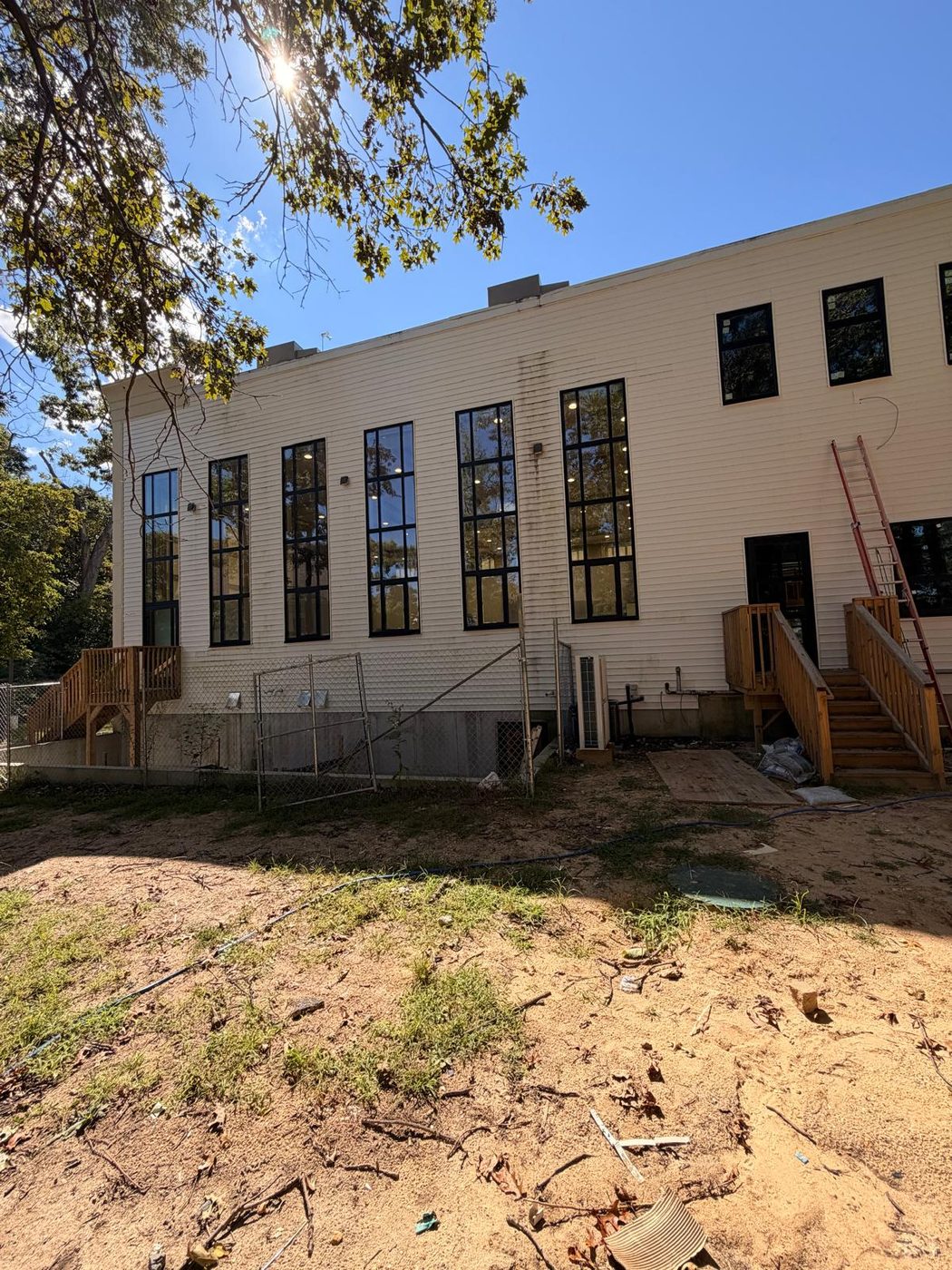

Rear elevation showing the full run of replacement windows — Lakewood, New Jersey — Rear elevation showing the full run of replacement windows

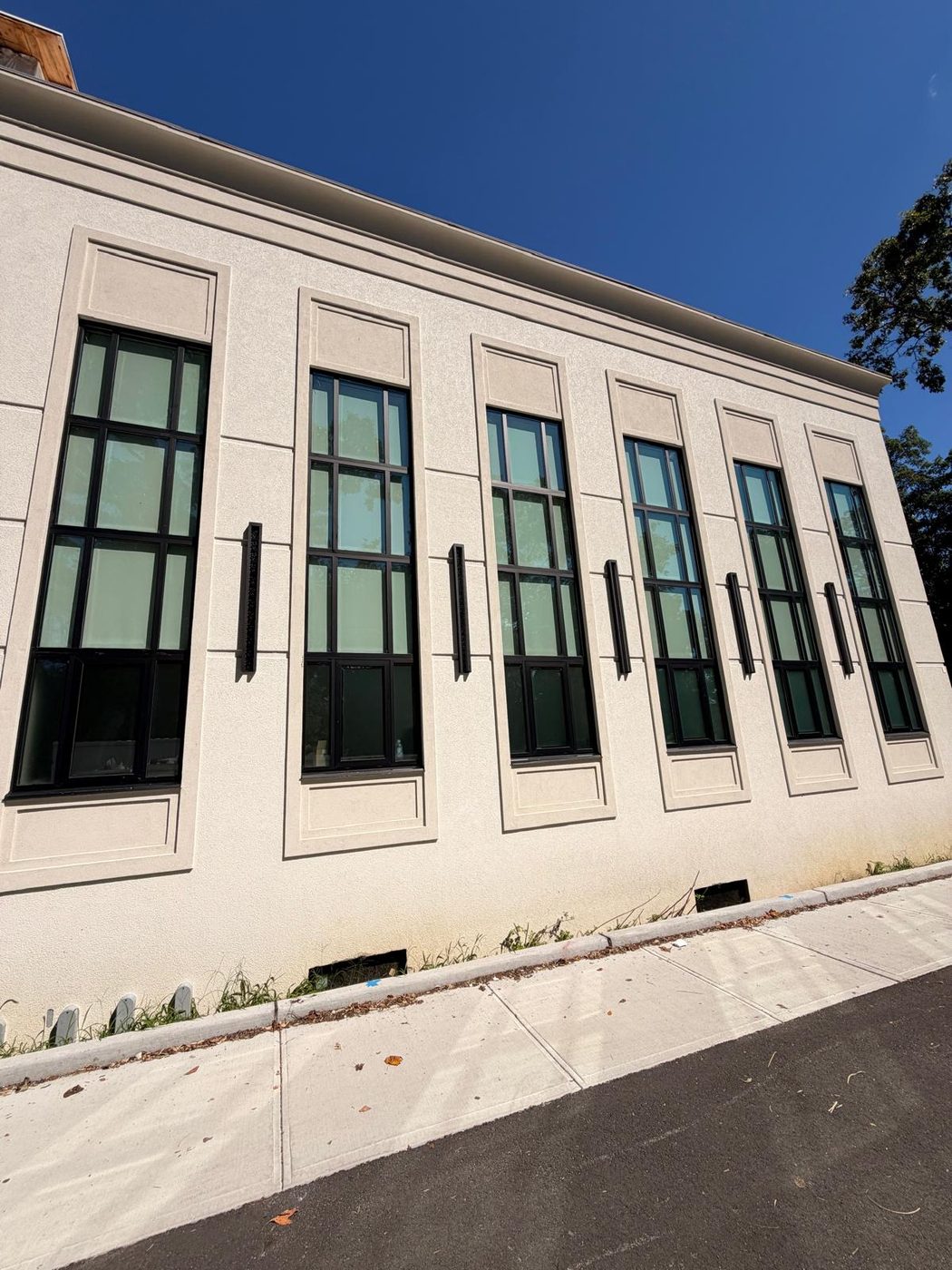

Completed facade with the repeating narrow window bays — Lakewood, New Jersey — Completed facade with the repeating narrow window bays

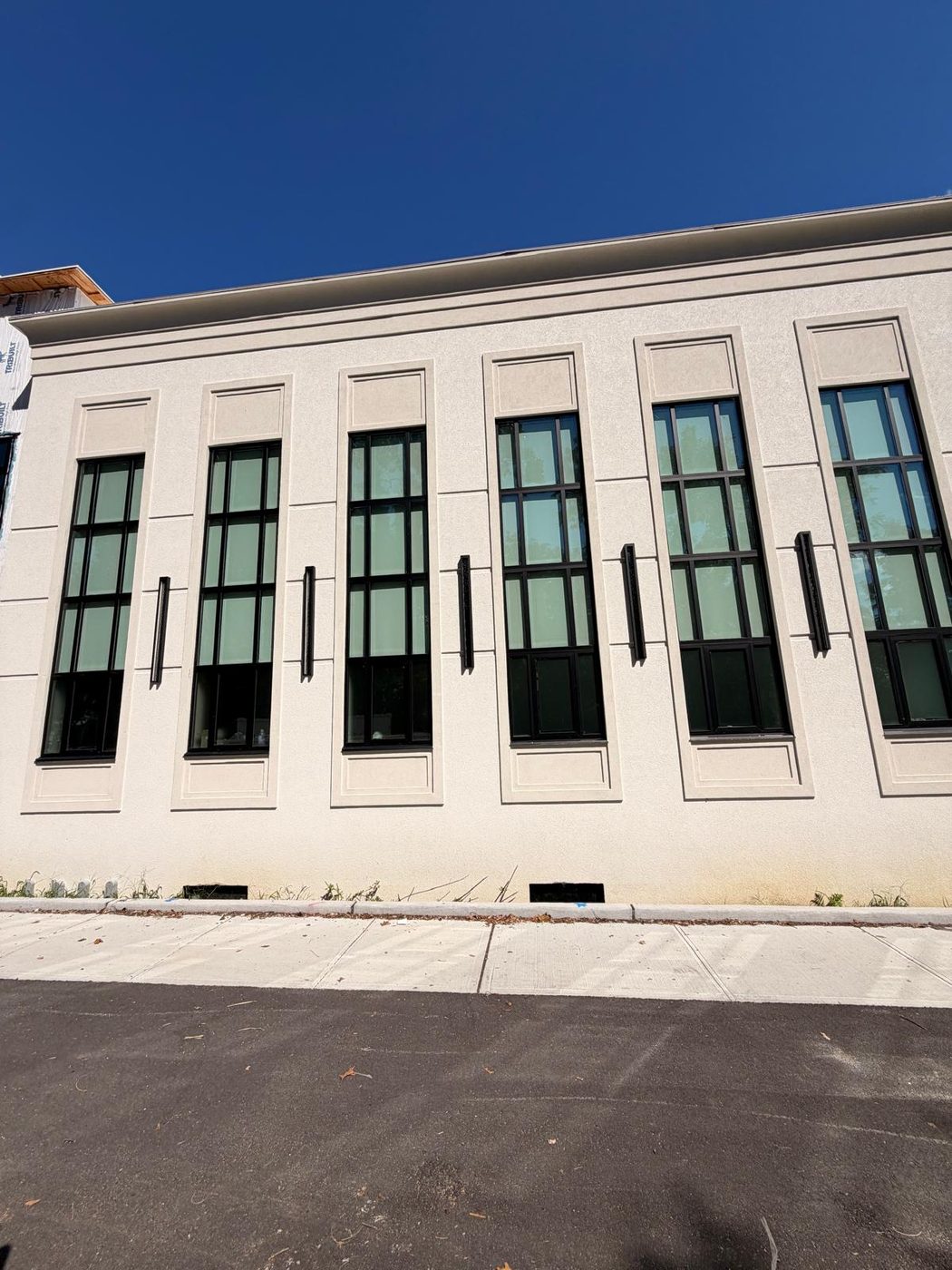

The narrow window bays at close range, showing sightlines and finish — Lakewood, New Jersey — The narrow window bays at close range, showing sightlines and finish

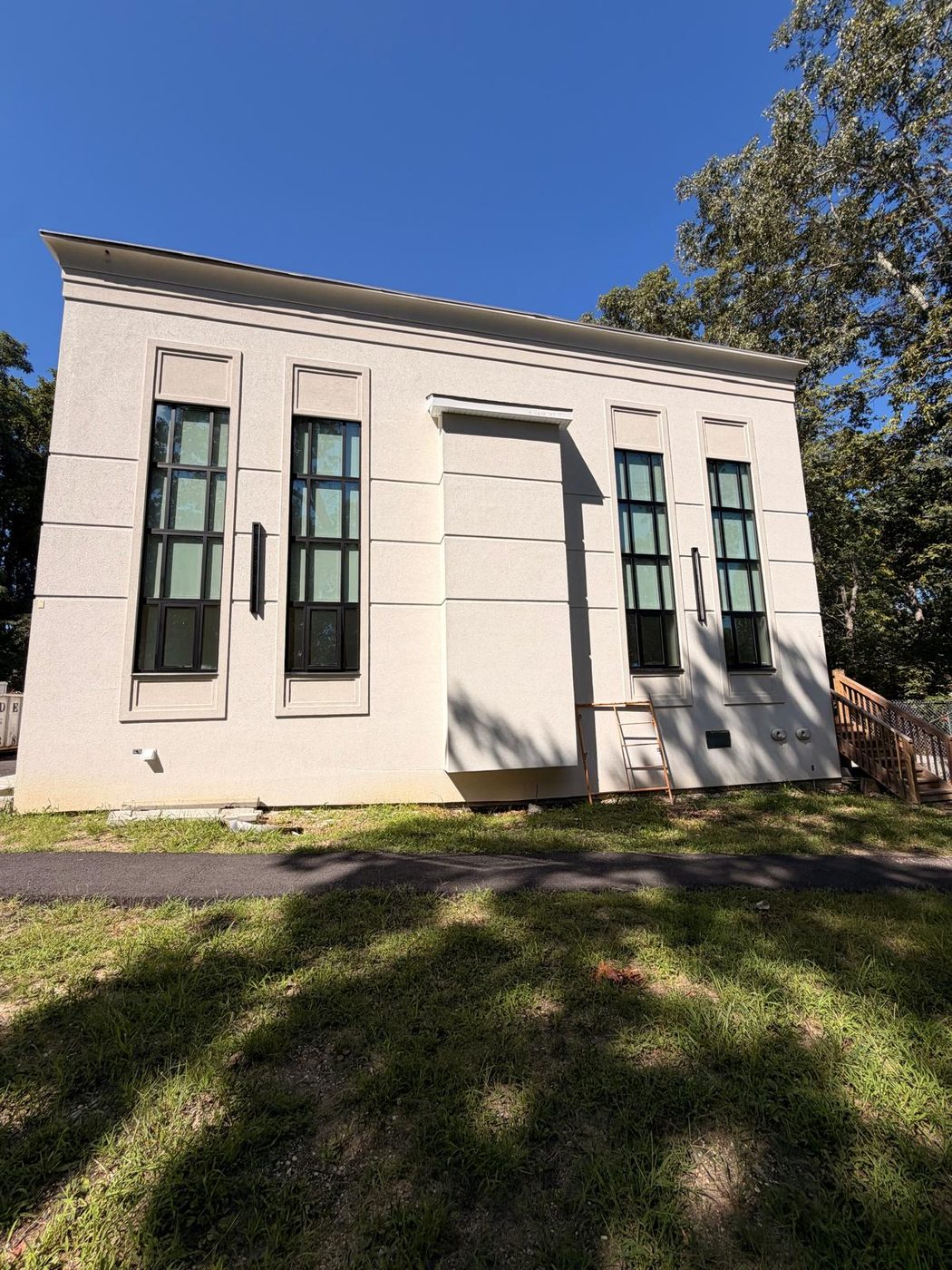

Corner detail where two elevations meet — Lakewood, New Jersey — Corner detail where two elevations meet

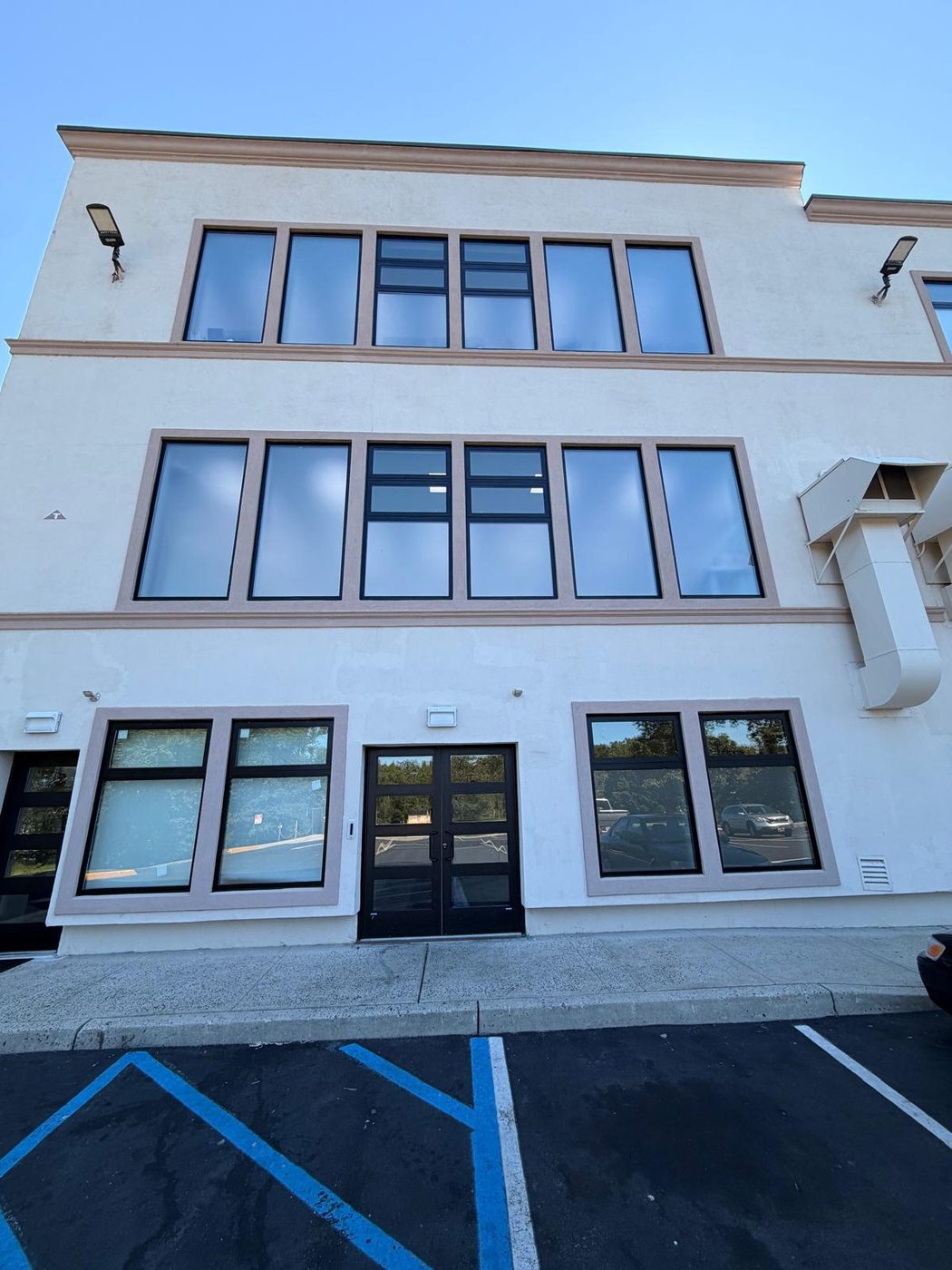

Three-storey elevation with commercial glazing at ground level — Lakewood, New Jersey — Three-storey elevation with commercial glazing at ground level

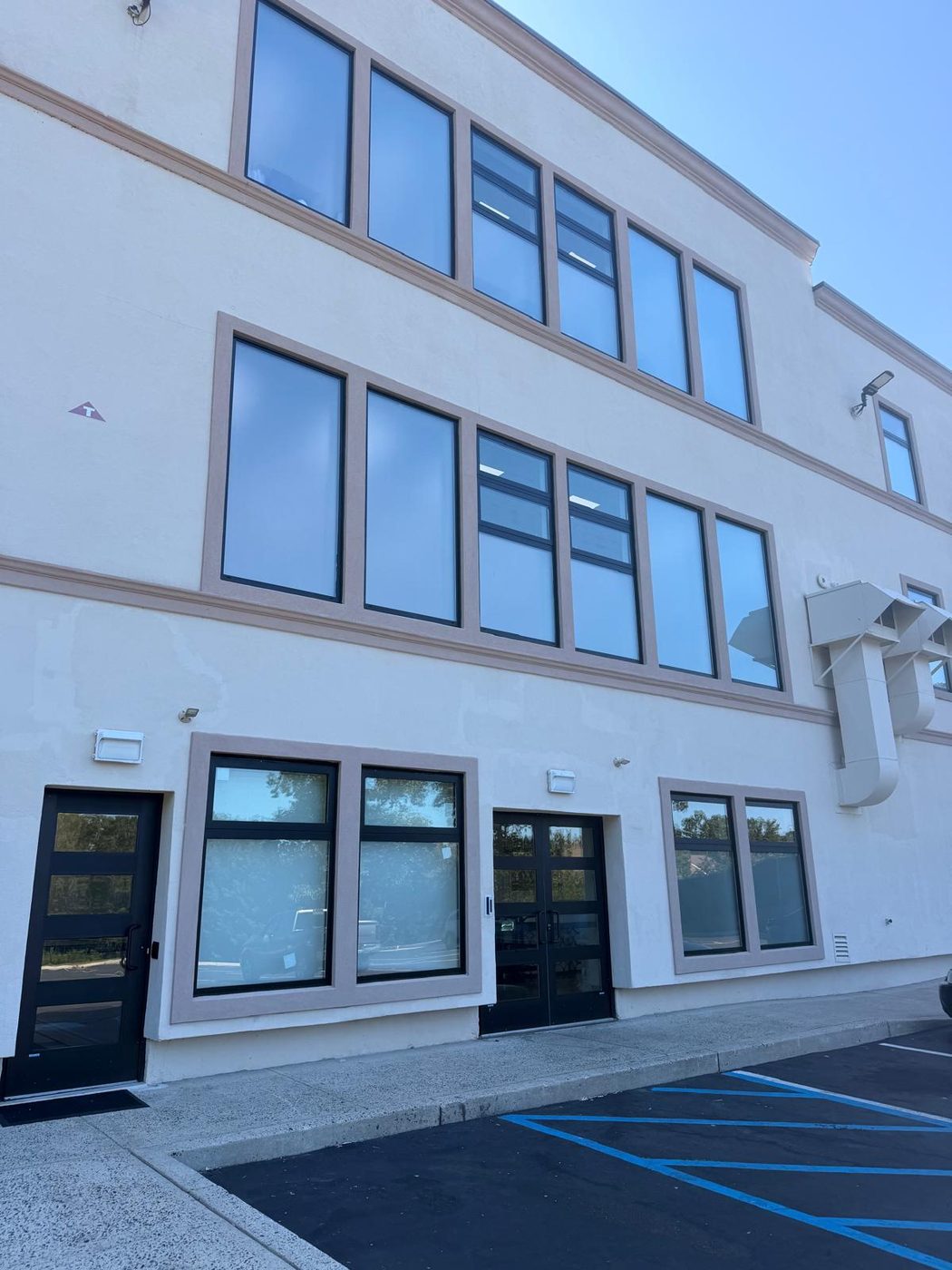

Storefront glazing and upper-floor windows on the same building — Lakewood, New Jersey — Storefront glazing and upper-floor windows on the same building

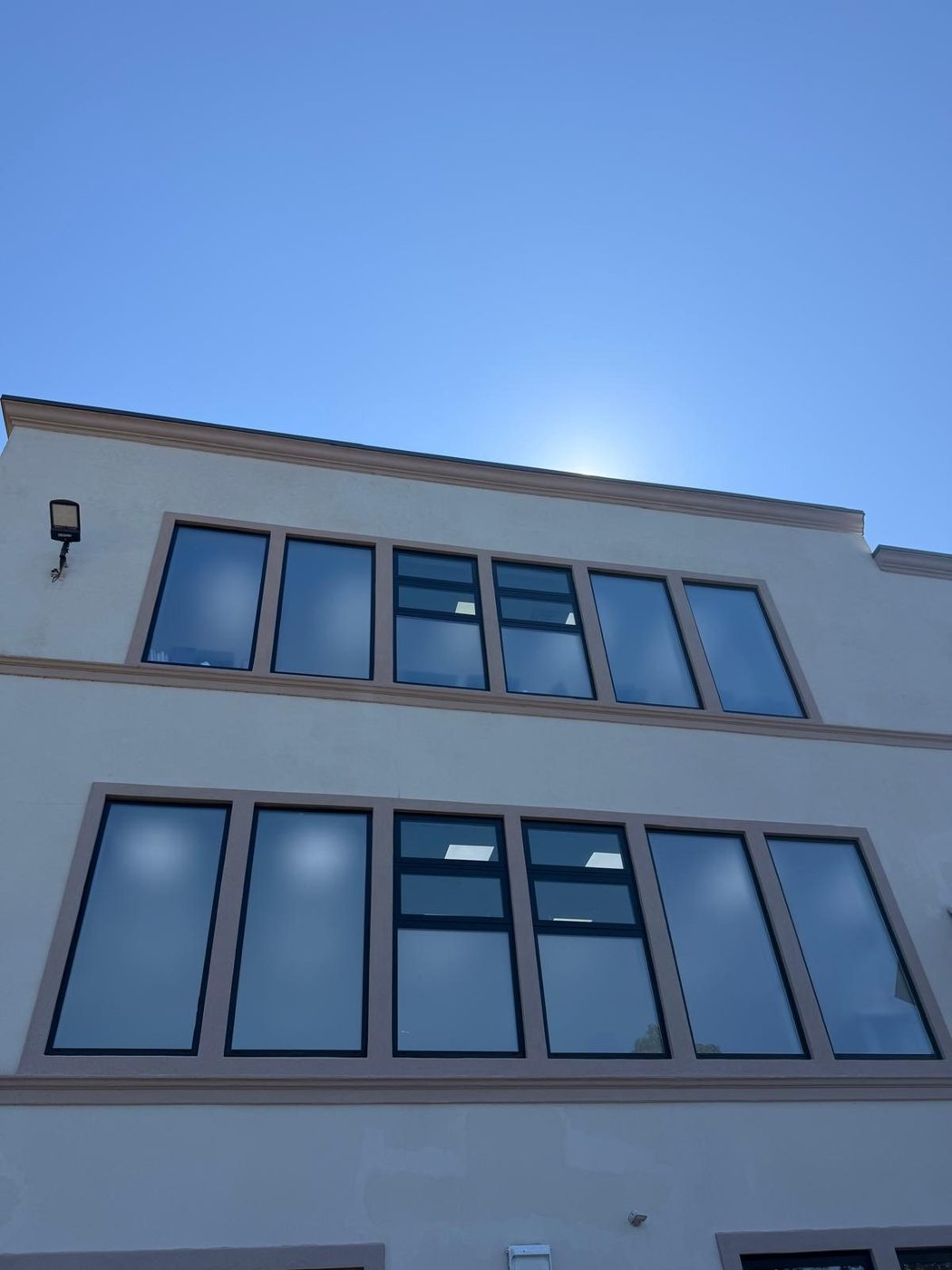

Aluminum window wall with transom lites above — Lakewood, New Jersey — Aluminum window wall with transom lites above

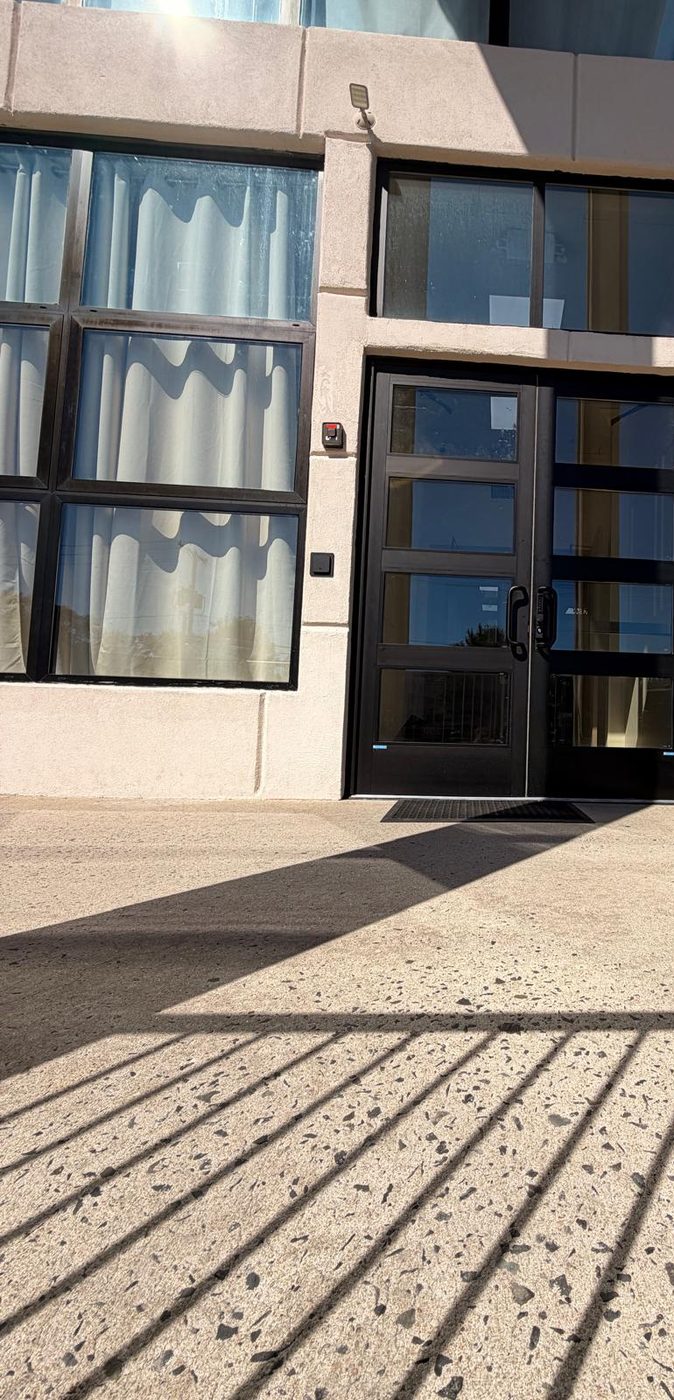

Commercial entrance doors with transom, in dark finish — Lakewood, New Jersey — Commercial entrance doors with transom, in dark finish

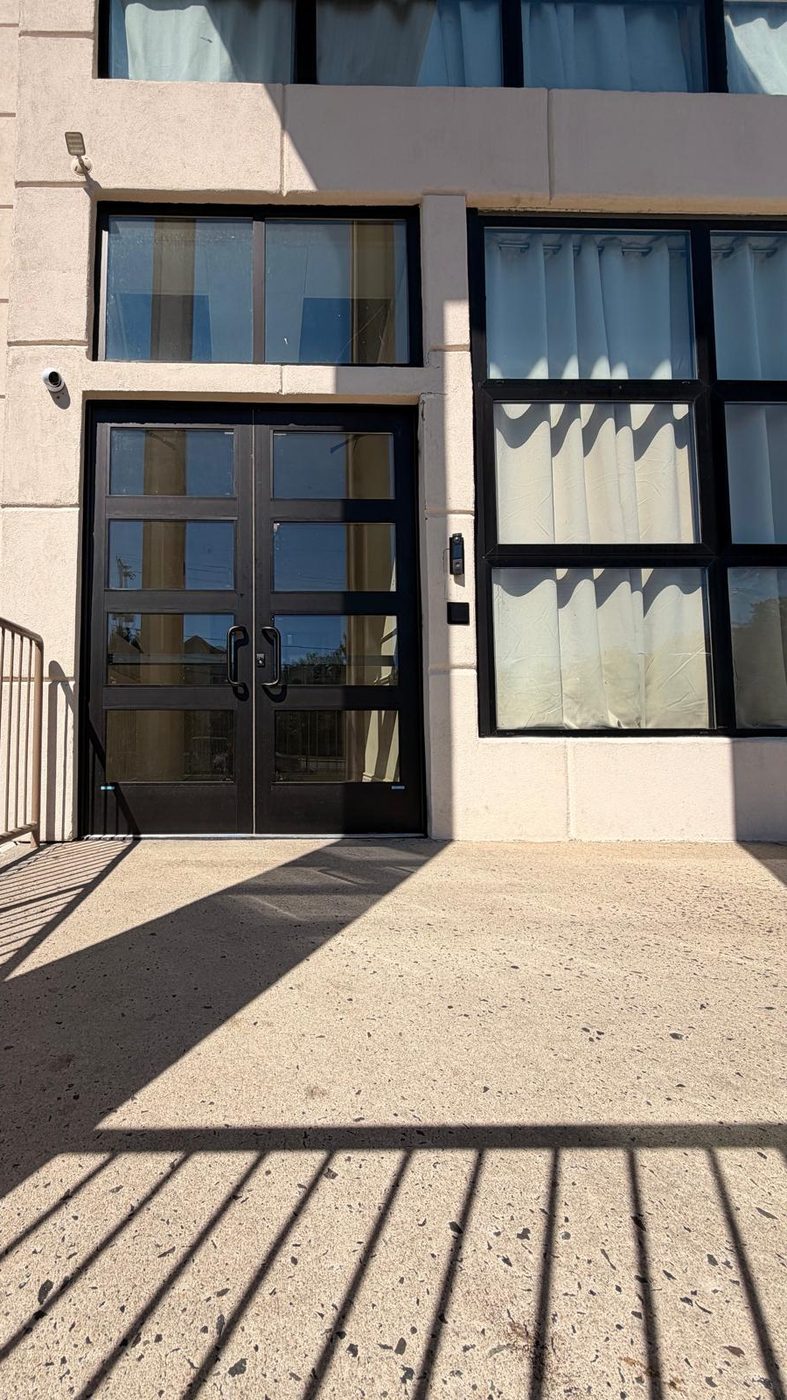

Entrance doors and adjacent glazing at the approach — Lakewood, New Jersey — Entrance doors and adjacent glazing at the approach

Working in Ocean County and Central New Jersey

Lakewood sits in Ocean County, and we work throughout the surrounding area — Toms River, Brick, Jackson, Howell, Manchester and Point Pleasant in Ocean County, and across the Monmouth County line to Freehold, Long Branch, Deal and the Shore.

Institutional and community buildings here tend to bring the same combination this project did: custom sizes that cannot be bought off a chart, a feature opening that has to be fabricated, commercial entrance doors rated for real traffic, and waterproofing that has to be right because nobody wants to reopen a finished facade.

Planning Something Similar?

Send us the opening dimensions and photographs, or the drawings if you have them. For shaped openings we will arrange to template rather than working from dimensions, because a circle made to the wrong geometry does not fit at all.
